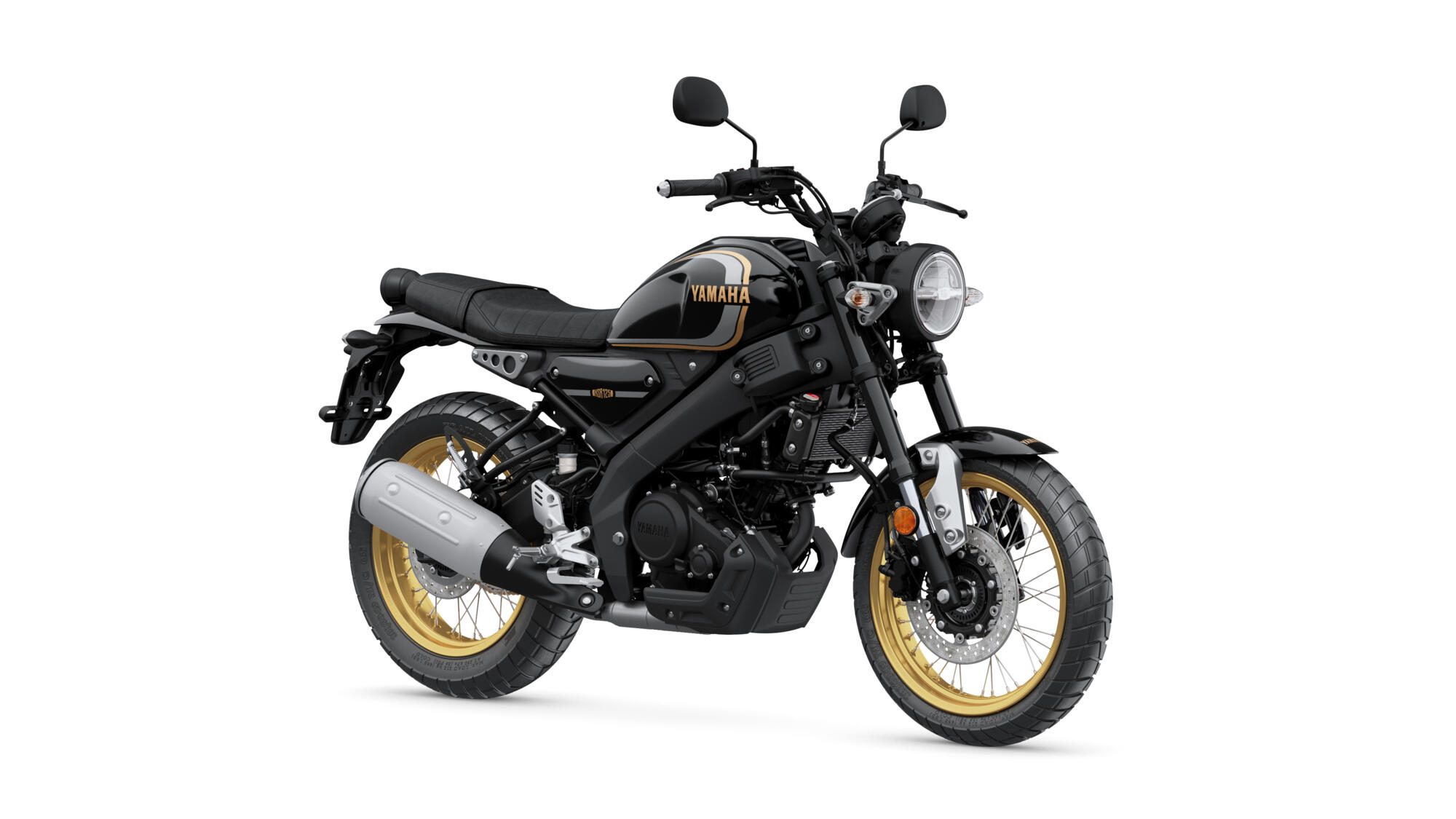

XSR125 Legacy
This lightweight “Faster Sons” model is the ideal bike for anyone who appreciates timeless design and authentic styling, but also wants the sporty performance offered by the latest engine and chassis technology. Inspired by the past and built for the future, the XSR125 Legacy is the ultimate choice for any rider, whether beginner, experienced or returning.
Take a look
- Heritage styling with sporty performance
- light spoked wheels with gold colored rims
- High Performance Sports Tires
- 2 Piece Aluminum Muffler Cover
- Special colors and graphics
- Class-leading 125cc 11kW engine
- 37mm inverted front forks
- Strong and lightweight Deltabox chassis
- Elegant LED lighting
- Detalles premium
travel through time
Take one look at the XSR125 Legacy and you’ll see that it’s built to stand out from any crowd. Spoke wheels with gold-colored rims, as well as round headlight housings and circular LCD instruments give this neo-retro a pure look that never goes out of style. You will also like the beautifully crafted details, such as the aluminum brackets, dedicated understated colors, and stylish graphics.
And as soon as you crank up the liquid-cooled 125cc engine, you’ll know that this powerful, lightweight engine has the performance you need. Developing 11kW – the upper limit for A1 license drivers – the XSR125 Legacy produces strong acceleration through the gears. Its Deltabox frame and inverted fork ensure sporty, light handling, and the upright riding position provides a comfortable ride at all times.
Technical specifications
Engine type: Liquid-cooled, SOHC, Single cylinder, 4-stroke
Displacement: 124 cc
Bore x Stroke: 52,0 x 58,6 mm
Compression ratio: 11.2 : 1
Maximum power: 11.0 kW and 10,000 rpm
Maximum torque: 11,5 Nm a 8000 r.p.m.
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6-speed
Final Drive: Chain
Approved consumption: 2.1L/100km
CO2 emission: 47g/km
Carburetor: Electronic fuel injection
Chassis: Diamond
Pivot lead angle: 26°
Pivot advance: 95mm
Front suspension system: Ø 37 mm inverted telescopic fork
Rear suspension system: Swing arm
Front Travel: 130mm
Rear travel: 110mm
Front brake: A hydraulic disc, Ø 267 mm
Rear brake: A hydraulic disc, Ø 220 mm
Front tire: 110/70-17
Rear tire: 140/70-17
Total length: 2005 mm
Overall width: 805 mm
Total height: 1090 mm
Seat height: 815
Distance between axis: 1330 mm
Minimum ground clearance: 160 mm
Weight (including full oil tank and fuel tank): 140 kg
Fuel tank capacity: 10L
Oil tank capacity: 1.05L
