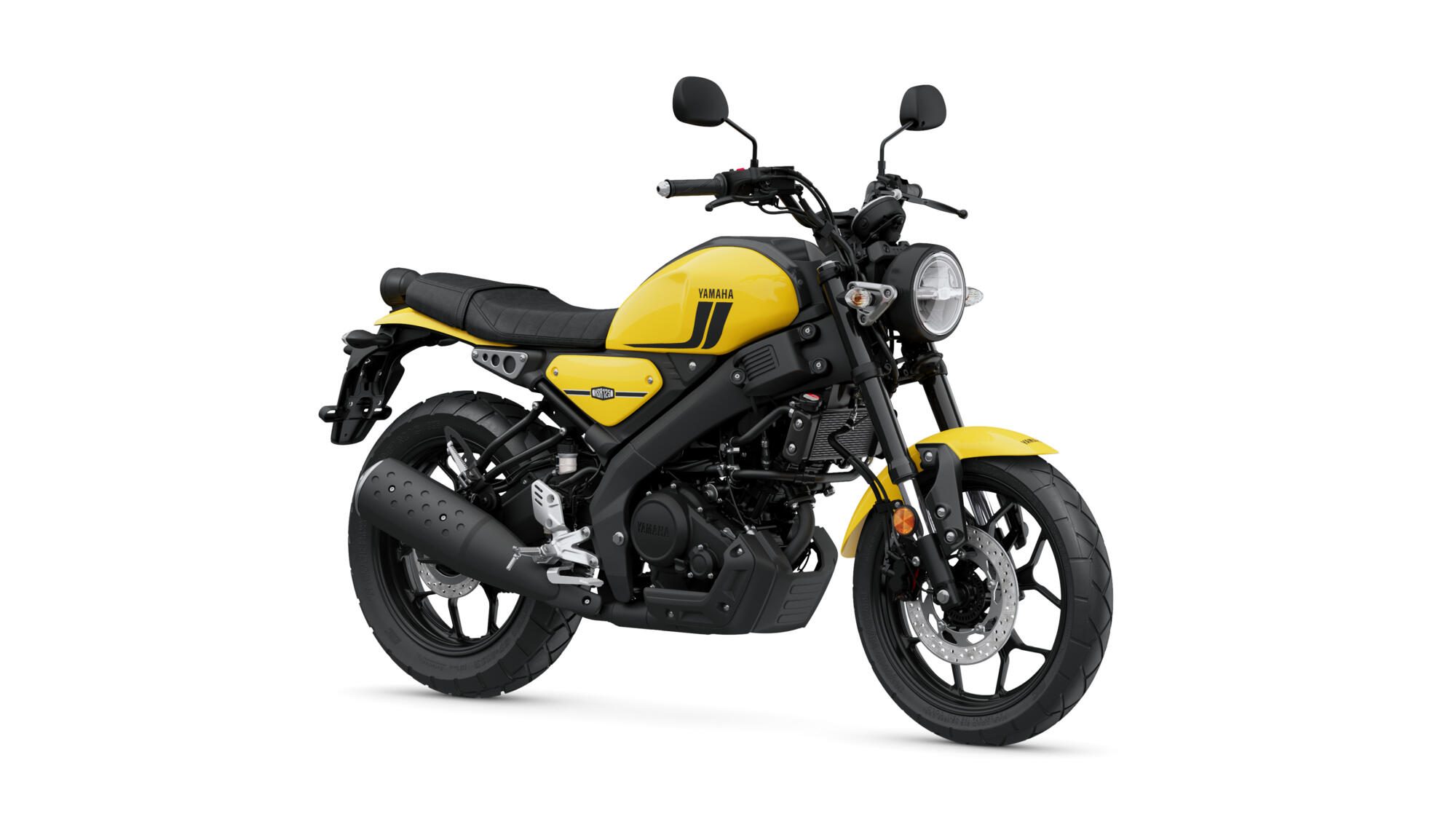

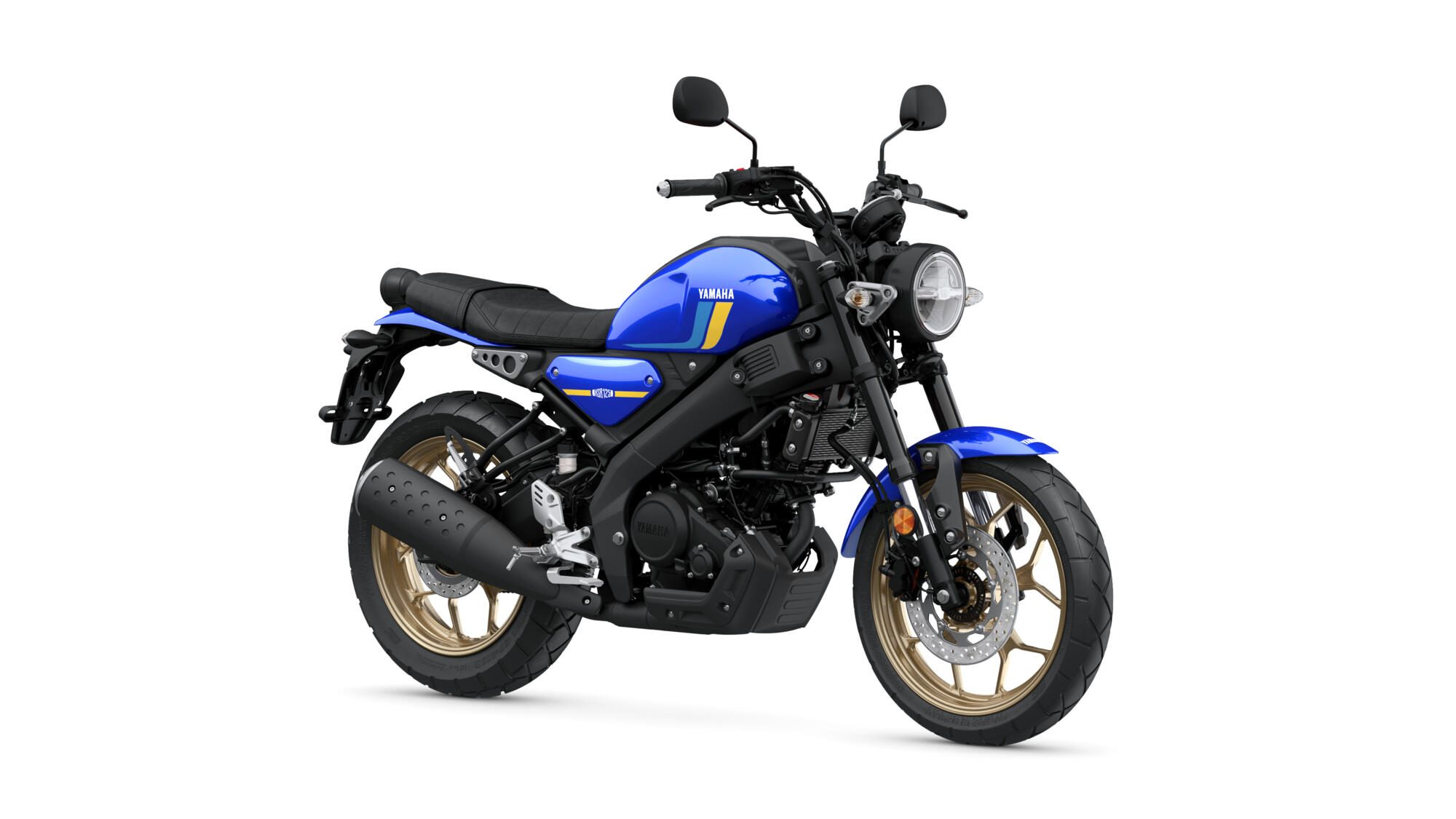

XSR125
The original XSR125 has everything it takes to get you where you want to go in less time. Its timeless good looks and bold colors stand out wherever you go, plus its powerful 11kW 125cc engine and nimble handling make every commute to work or university much more fun than taking public transport crowded.
Take a look
- Best-in-class 125cc EU5 engine
- Pure and timeless XSR styling
- USD 37mm front forks
- Stylish knobby pattern tires
- High-tech front and rear LED headlights
- Strong and lightweight Deltabox chassis
- Premium details
- Circular LCD Instruments
Born for free spirits
It is the most accessible bike in Yamaha’s Sport Heritage range and comes with premium features including LED lights just like the larger displacement XSR700 and XSR900, as well as a lightweight Deltabox chassis and USD front fork that provide a safe and comfortable ride.
The new XSR125 is part of Yamaha’s stylish and exclusive Faster Sons movement, which includes a whole package of clothing and accessories to match your character. It’s the sure path to more fun and freedom, and it’s ready to help you achieve your goals.
Technical specifications
Engine type: Liquid-cooled, SOHC, Single cylinder, 4-stroke
Displacement: 124cc
Bore x Stroke: 52.0 x 58.6mm
Compression ratio: 11.2:1
Maximum power: 11.0 kW at 10,000 rpm
Maximum torque: 11.5Nm at 8000rpm
Lubrication system: Wet sump
Clutch type: Wet, Multi-disc
Ignition system: TCI
Starting system: Electric
Drive system: Constant take, 6-speed
Final Drive: Chain
Approved consumption: 2.1L/100km
CO2 emission: 47g/km
Carburetor: Electronic fuel injection
Chassis: Diamond
Pivot lead angle: 26th
Pivot advance: 95mm
Front suspension system: Ø 37 mm inverted telescopic fork
Rear suspension system: Swing arm
Front Travel: 130mm
Rear travel: 110mm
Front brake: A hydraulic disc, Ø 267 mm
Rear brake: A hydraulic disc, Ø 220 mm
Front tire: 110/70-17
Rear tire: 140/70-17
Total length: 1,960mm
Total width: 800mm
Total height: 1,065mm
Seat height: 815mm
Distance between axis: 1,330mm
Minimum ground clearance: 160mm
Weight (including full oil tank and fuel tank): 140kg
Fuel tank capacity: 10L
Oil tank capacity: 1.05L
