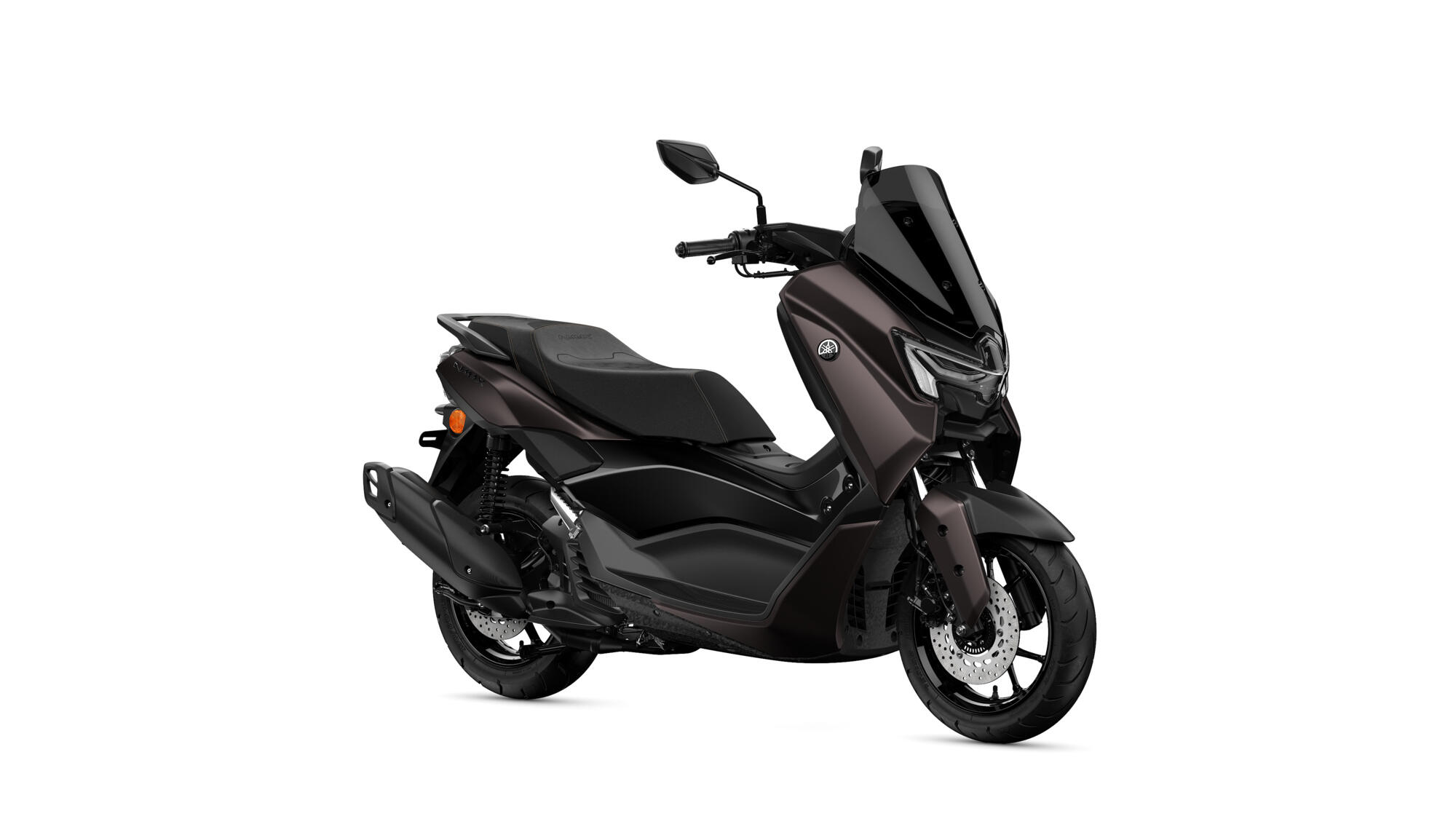

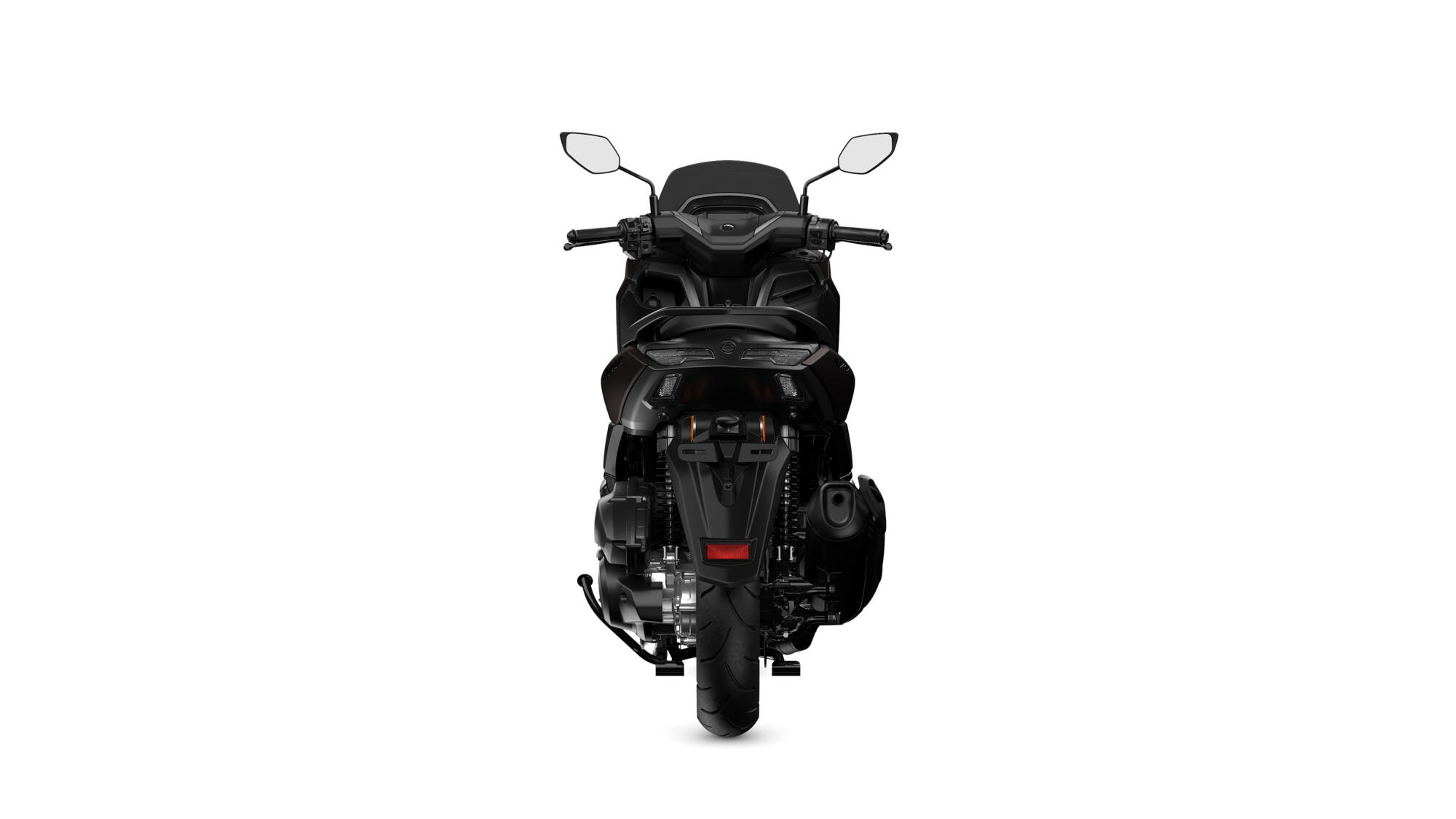

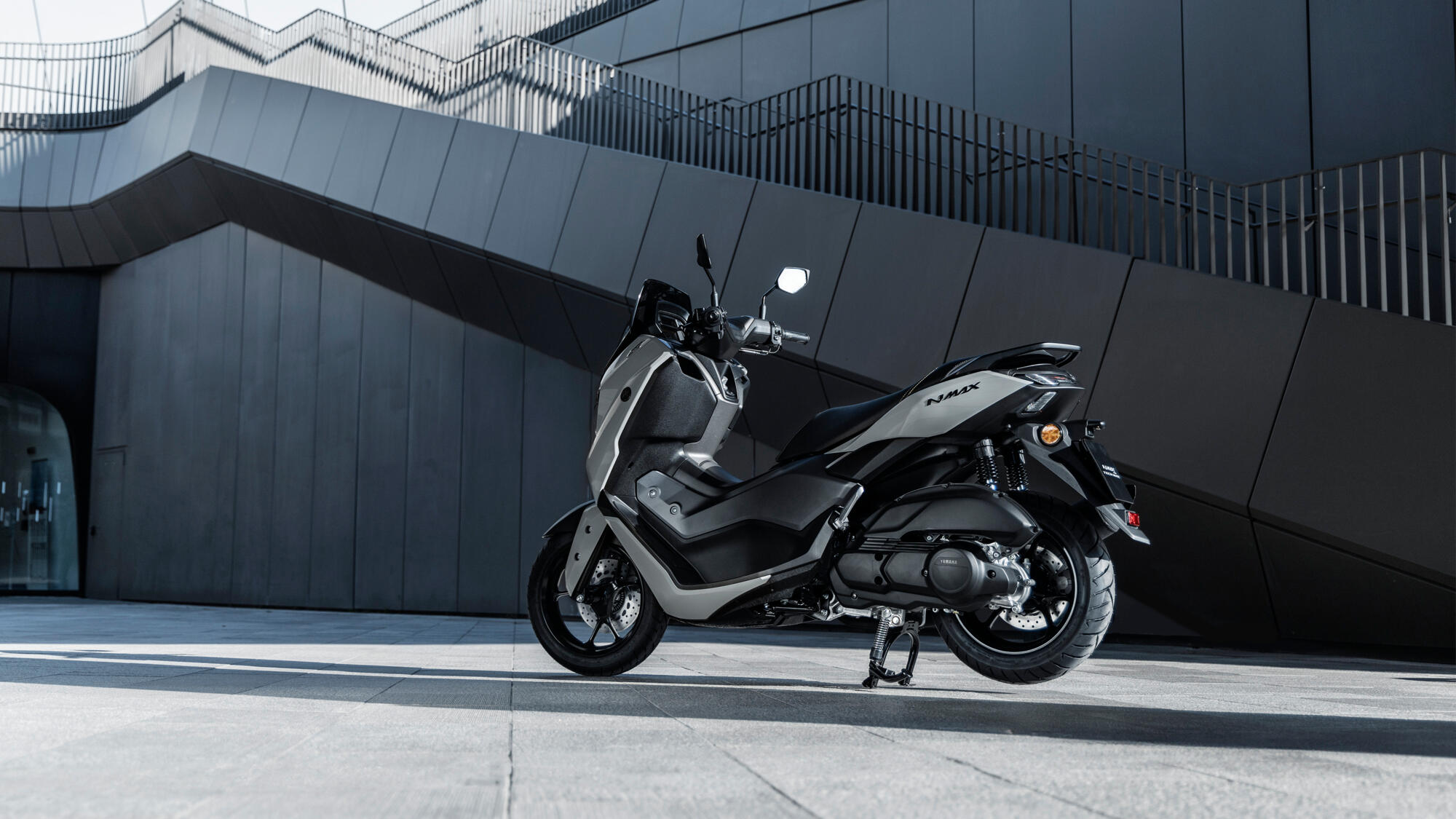

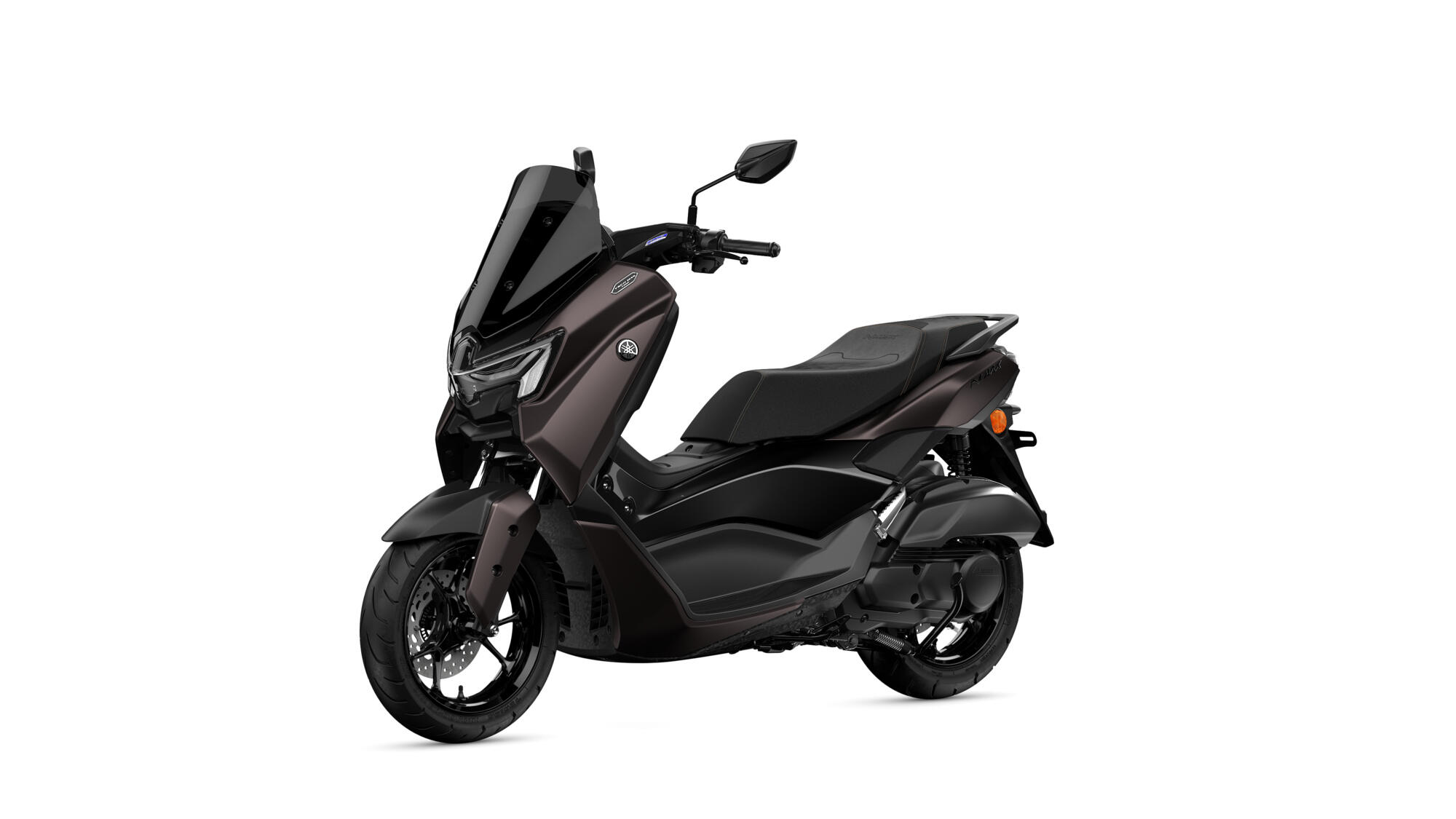

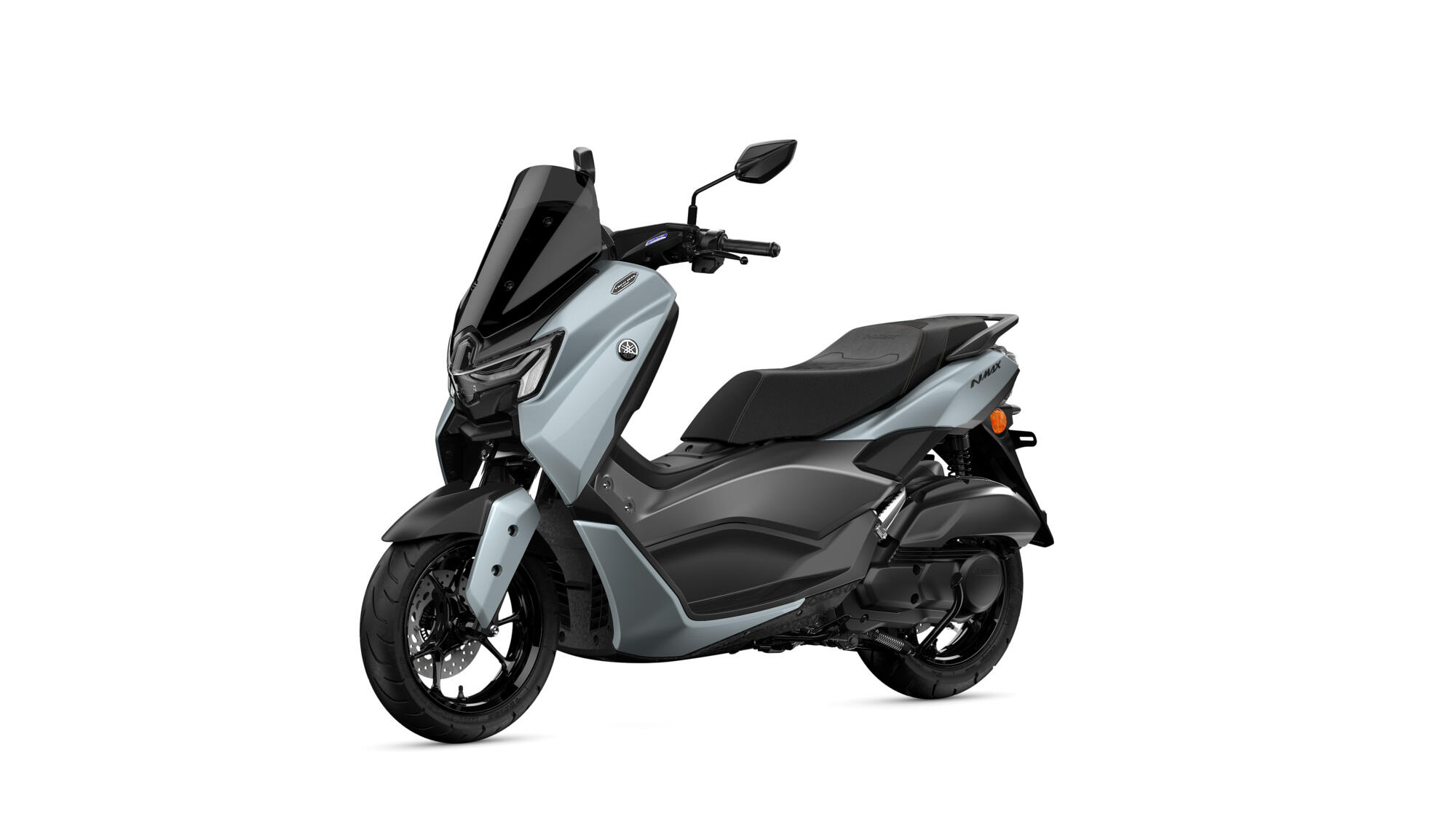

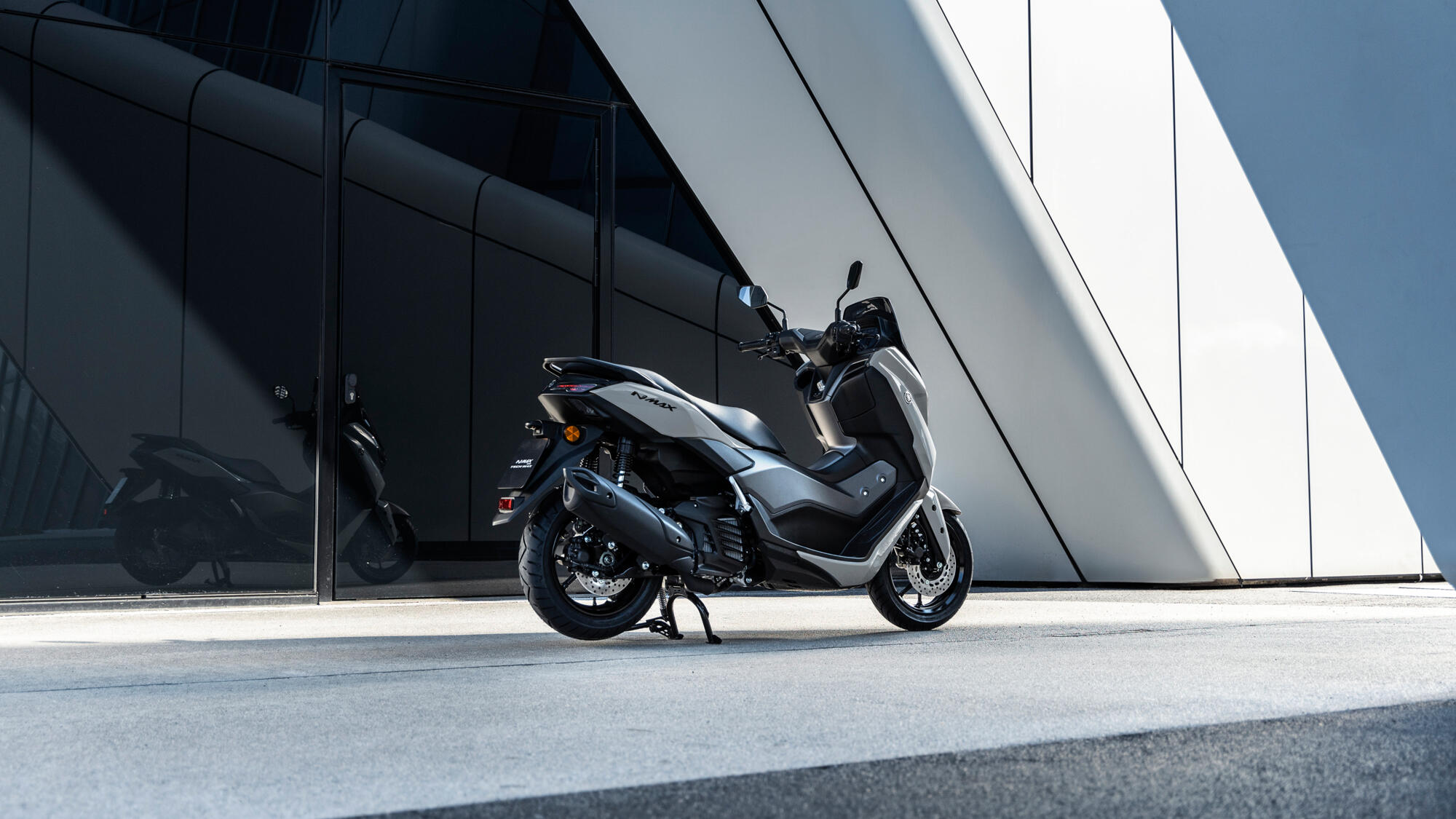

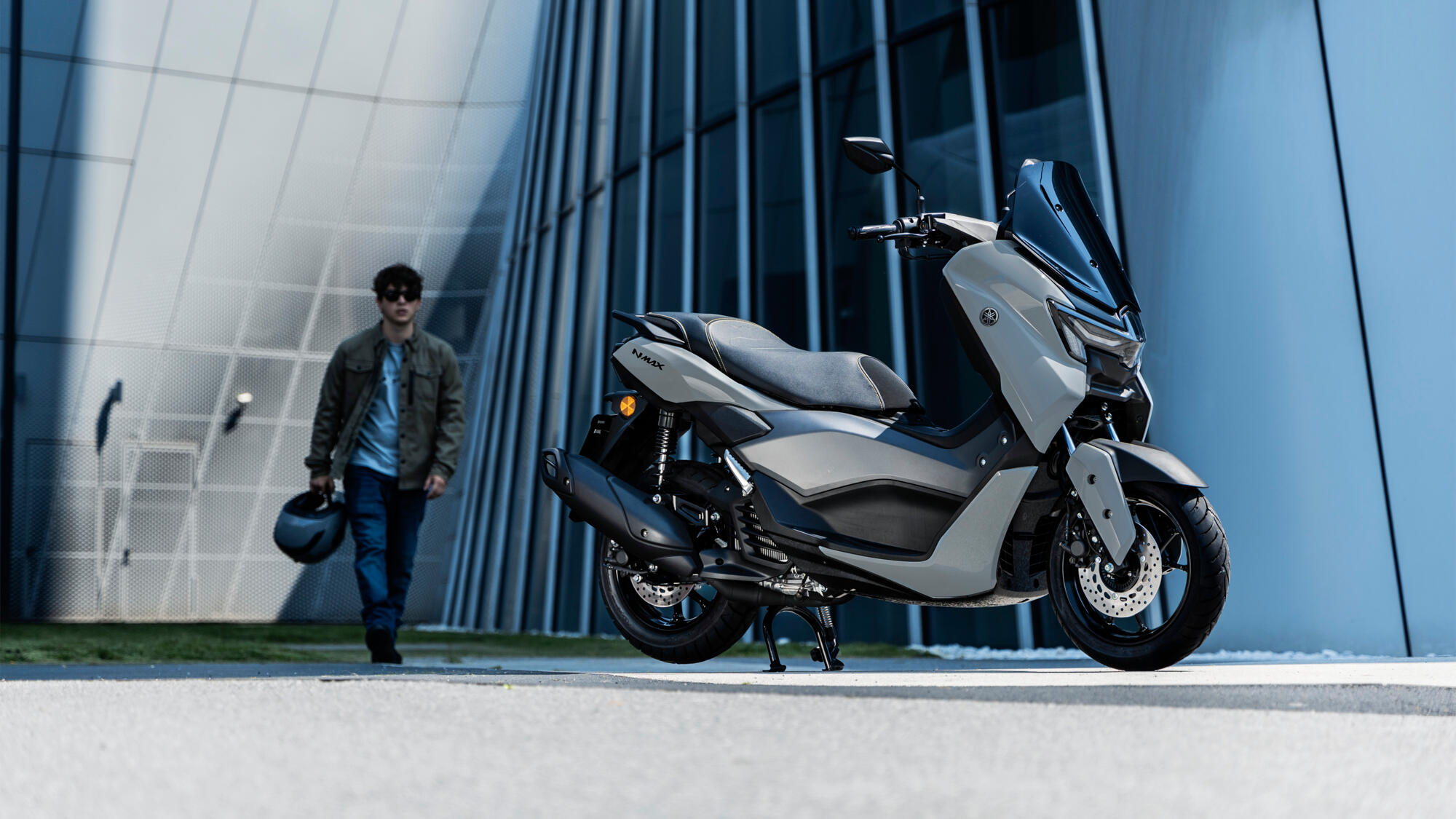

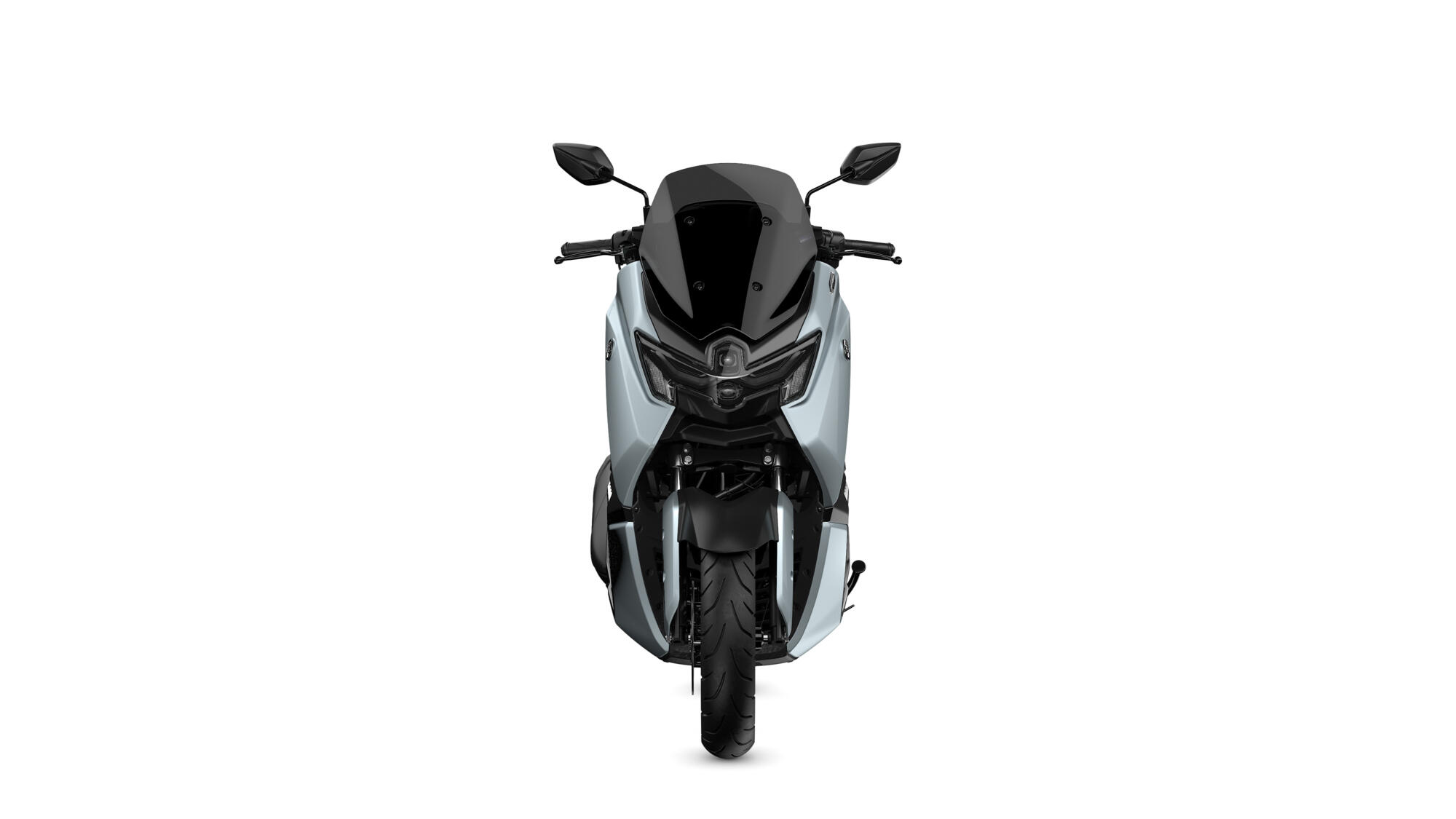

Nmax 125
Tech MAX is Yamaha’s class-leading MAX Sport Scooter line that comes with all the style, exclusivity and functionality you’d expect from a flagship range. Equipped as standard with a state-of-the-art specification that includes a connected TFT dash and Garmin Navigation*, as well as a luxury seat and special colours, the NMAX 125 Tech MAX is the ultimate lightweight. (*Full map Garmin Navigation is available free of charge for NMAX Tech MAX models but is not offered in all countries. Some navigation features are not available in all countries.)
Take a look
- Dynamic MAX-inspired design

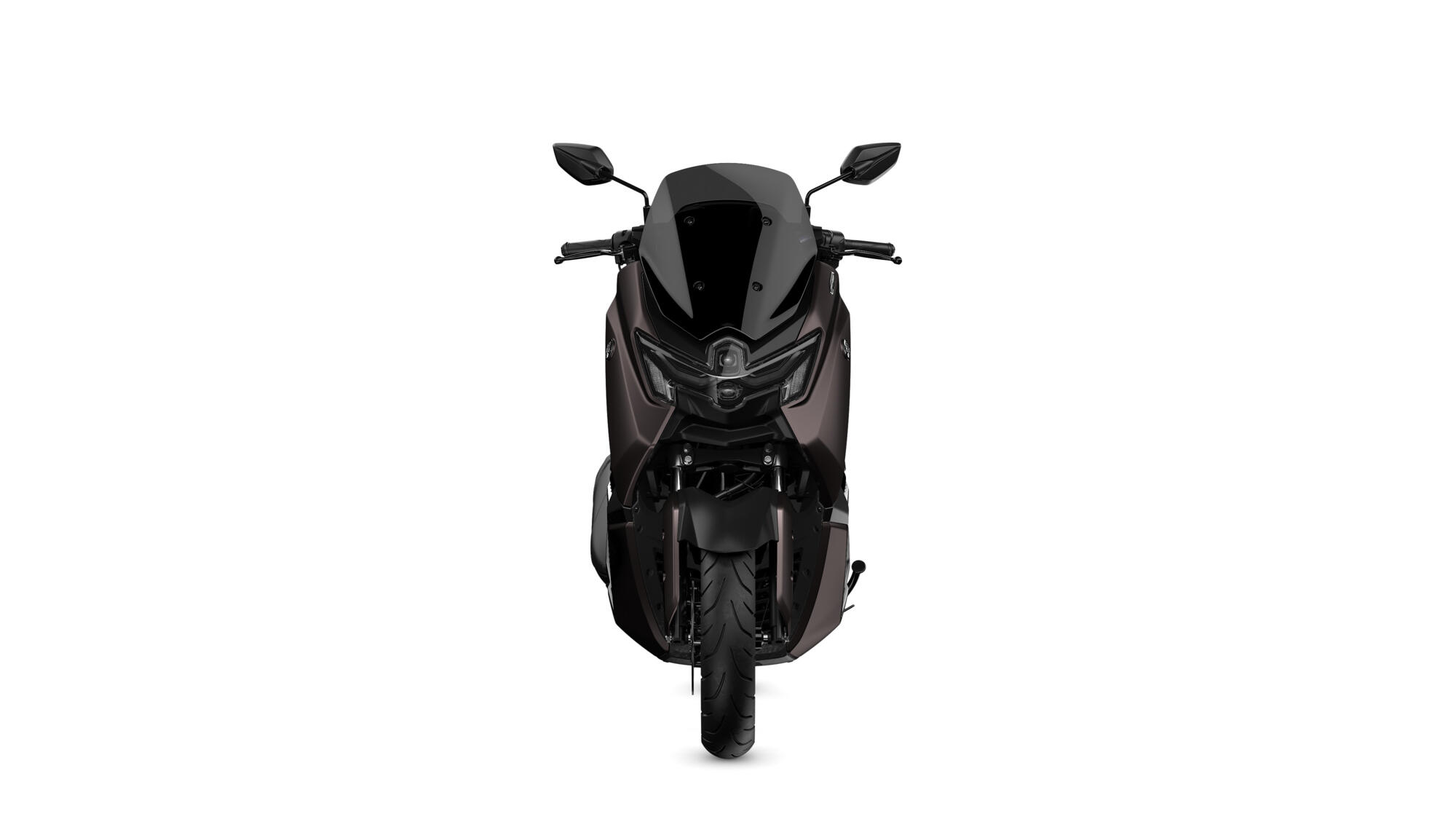

- Dual-eye projector headlights
- LED taillight
- 4.2-inch connected TFT dash
- Exclusive Tech MAX nish
- 125cc EURO5+ engine
- Start & Stop system
- 13-inch wheels, disc brakes with ABS
- Underseat storage
- USB-C charger and front pockets
- Smart Key keyless ignition
Join the max
Featuring a compact new body and dynamic dual-eye headlights, NMAX 125 Tech MAX takes the affordable 125cc category to a whole new level. And with its iconic MAX-inspired design, first-class finish and extra features, the Tech MAX is the clear choice for riders who want a premium version of the NMAX 125.
What makes the NMAX 125 Tech MAX even more attractive is its easy accessibility and daily practicality. Designed for commuting to work and leisure, it’s an ideal scooter for car drivers and returning riders who want the freedom of two wheels. And it’s the best way to become a part of the MAX Sport Scooter family.
Technical specifications
Engine type |
4-stroke, Liquid-cooled, SOHC, 4-valves |
Displacement |
125cc |
Bore x stroke |
52.0×58.7mm |
Compression ratio |
11.2:1 |
Maximum power |
9.0kW (12.2PS)/8000r/min |
Maximum torque |
11.2N・m(1.1kgf・m)/6000r/min |
Lubrication system |
Wet sump |
Fuel system |
Fuel Injection |
Ignition system |
TCI |
Starter system |
Electric |
Transmission system |
V-Belt Automatic |
Fuel consumption |
2,2L/100km |
CO2 emission |
52g/km |
Front suspension system |
Telescopic forks |
Front travel |
100mm |
Rear suspension system |
Unit Swing |
Rear travel |
91mm |
Front brake |
Hydraulic single disc brake |
Rear brake |
Hydraulic single disc brake |
Front tyre |
110/70-13M/C 48P Tubeless |
Rear tyre |
130/70-13M/C 63P Tubeless |
Overall length |
1935mm |
Overall width |
740mm |
Overall height |
1200mm |
Seat height |
770mm |
Wheelbase |
1340mm |
Minimum ground clearance |
125mm |
Wet weight |
132kg |
Fuel tank capacity |
7.1L |
Screen type |
TFT |
Screen size |
4.2-inch |
Smartphone Connectivity |
MyRide |
On-screen Navigation |
Garmin StreetCross |
